Hercules Mono Power Amplifier – Divine Line MY25

The new updated Hercules, our top mono power amplifier from Divine Line.

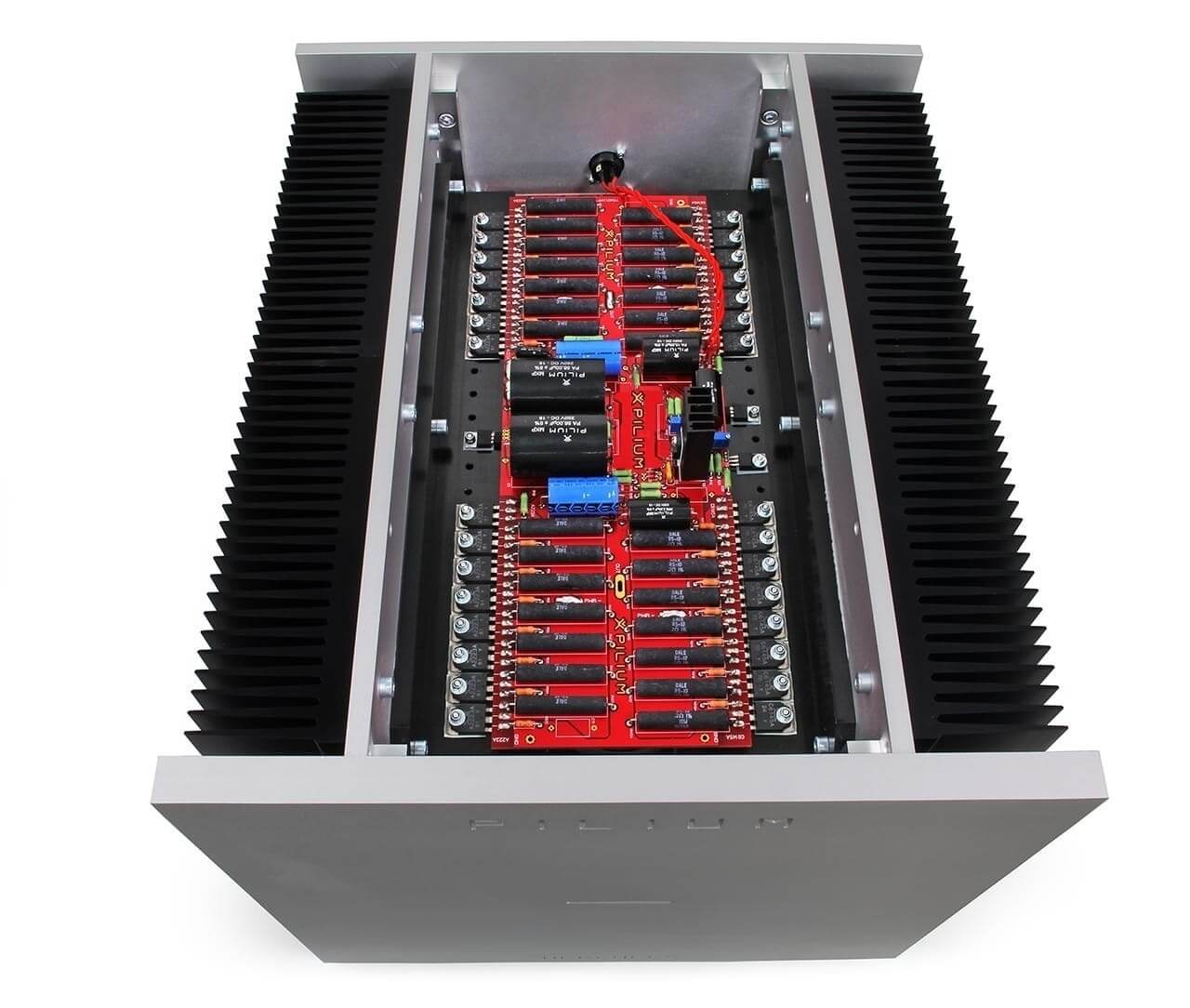

With the technology and experience we acquired from the development of our Master Divine line of amplifiers, we redesigned the whole Amplifier circuit bringing it to a new level of performance, replaced the transformers with new Encapsulated ultra low noise ones and added new custom made Heatsinks CNC machined from a unique piece of aluminium block for improved performance and aesthetics!

As with every Pilium component it is built with cost-no-object parts and materials, custom made capacitors tailored made specifically for Pilium, ultra low noise custom made transformers, custom made special wiring in order to come as close as possible to the ultimate music reproduction!

For 2025 Hercules became an amplifier beyond expectations, with even more refined performance! The best became even better… Neutral, Smooth, Uncoloured, Fast and Transparent!

Key Features:

  • 1 x 2,0KVA transformer
  • 240.000uF extra long-life specialized custom made capacitors
  • 24 Ultra wide bandwith powerful transistors
  • Military specs pcbs
  • Isolated from chassis Transformer’s Base
  • Separate IEC for Analogue and Digital circuitry
  • Microprocessor digitally controlled DC, Temperature, speaker protection and and Anti-Clipping warning system
  • Completely separated audio signal circuitry from the one that does not process audio signal

Specifications

  • Dedicated unique mono design

  • Power:  300W @ 8Ω, 600W @ 4Ω, 1200W @ 2Ω (1 Ohm stable)

  • Frequency Response:(-3dB) : 0.1 Hz – 125 kHz

  • Signal to Noise : 130.1 dB

  • Distortion:  THD + N: 0.00325% @ 1kHz, 50W

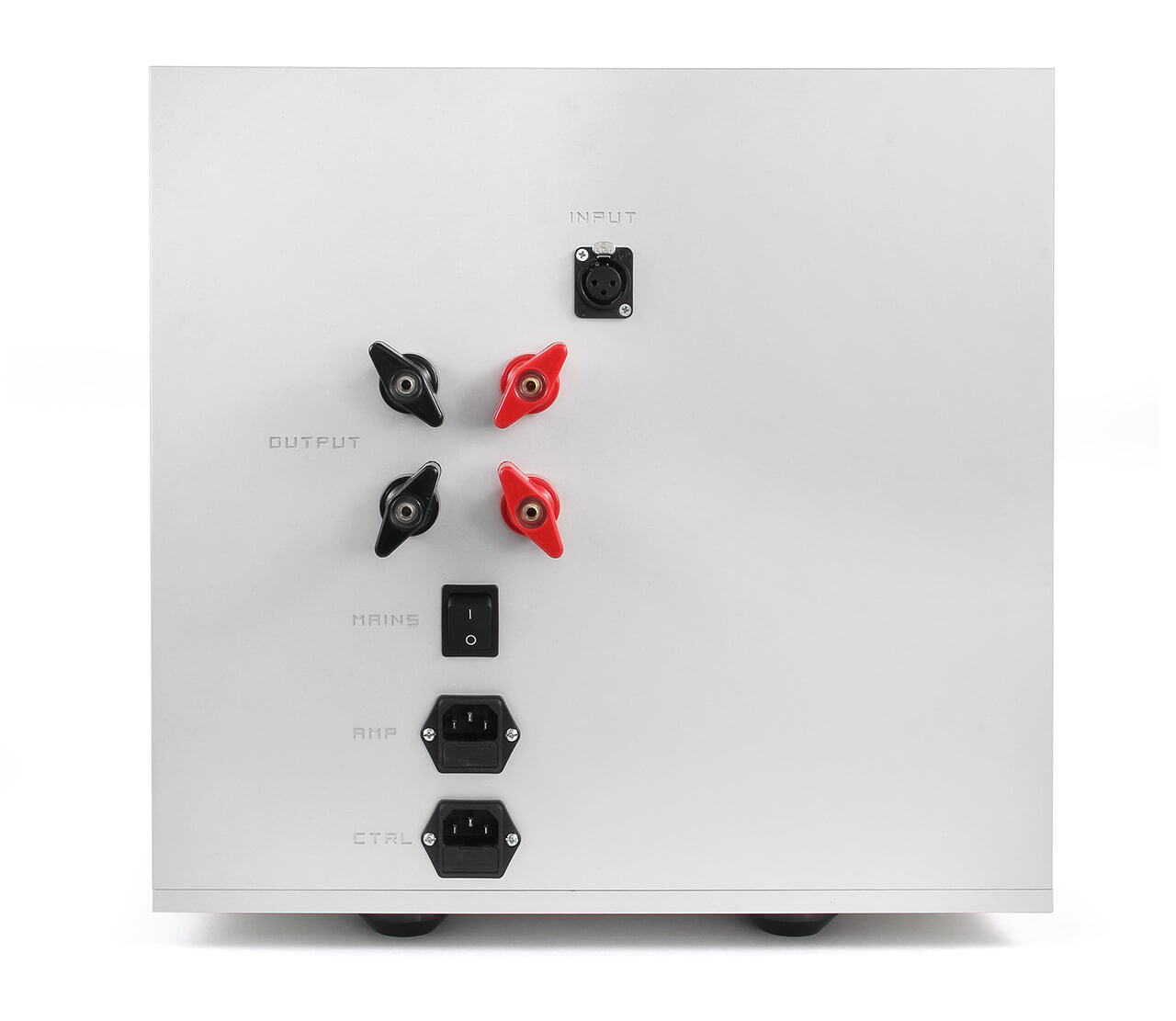

  • Inputs: 1 pair XLR

  • Voltage gain: +31 dB (35)

  • Analog Input: 1 xXLR (Vin= 1.4 VRms, Zin=5KΩ)

  • Output impedance : <0.1 Ω

  • Dimensions: 410x400x490mm (HxWxD)

  • Net Weight: 110kg

  • Shipping Weight: 135 kg

  • Power Consumption (Standby): 56W

  • Power Consumption (Maximum): 1800W
