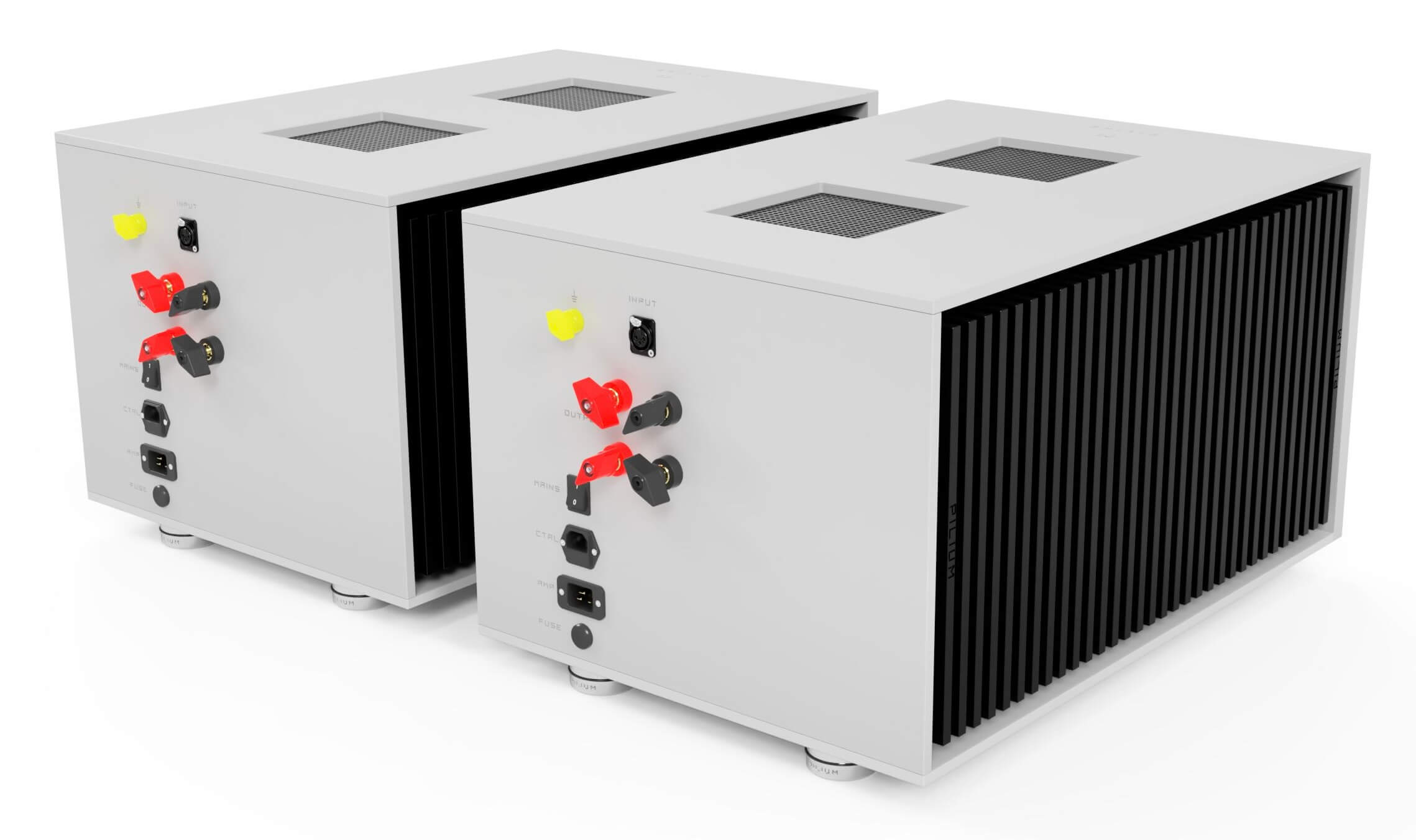

Atlas Amplifier – Master Divine Line

The evolution of the entire Divine line… A new generation of amplifiers based in the most special components with the latest technology available in 2023 and built to perform at the ULTIMATE level. After 4 years of development, we managed to further improve our Neutral, Smooth, Uncoloured, Fast and Transparent sound even more, with an ULTRA powerful amplifier stable at 0,5 ohm! No matter what loudspeaker you have, this amplifier will drive uncompromisingly any load and as a true Pilium amplifier will stay in the shadow and promote your loudspeaker’s true nature and characteristics!

Key Features:

  • 2 x 1.8 KVA encapsulated ultra low noise transformers and isolated from the chassis
  • 1 x 640.000uF capacitance custom made super capacitors
  • 1 x 40 Ultra wide bandwidth powerful transistors
  • Military specs pcbs
  • Separate IEC for Analogue and separate IEC for digital circuitry
  • Microprocessor digitally controlled DC, Temperature, speaker protection
  • Completely separated audio signal circuitry from the one that does not process audio signal

Specifications

  • Dedicated unique mono design

  • Power:  1x450W @ 8Ω, 1x900W @ 4Ω, 1x1800W @ 2Ω (0.5 Ohm stable)

  • Frequency Response (-3dB) : 0.1 Hz – 125 kHz

  • Signal to Noise : 132.9 dB

  • Distortion: THD + N: 0.00240% @ 1kHz, 50W

  • Voltage gain: +31 dB (35)

  • Analog Input: 1 xXLR (Vin= 1.4 VRms, Zin=5KO or 5200)

  • Output impedance : <0.1 Ω

  • Power Consumption (Standby): 60W

  • Power Consumption (Maximum): 3600W

  • Signal Input: 1 XLR

  • Speaker Terminals: 2 pairs

  • Ground Input: 1 Binding post

  • Power Inputs: 1 IEC 16A + 1 IEC 10A

  • Dimensions: 412x480x705mm (HxWxD)

  • Net Weight: 168kg

  • Shipping Weight: 196kg
